SPE Motorsport 2020+ GT500 Fuel Rails

SPE Motorsport 2020+ GT500 Fuel Rails

SPE is happy to introduce our new 2020+ Shelby GT500 mustang billet fuel rails. When trying to make more horsepower with the new GT500, be it with pump gas, race gas, or E85, the factory fuel rails become a bottleneck mainly due to the way the fuel is distributed to the rails. The feed hose tees in from the side and has to be distributed to two rails through a very inefficiently designed crossover fitting assembly. This is only good for manufacturing purposes. SPE decided to make a fuel rail kit that not only addressed the performance issues but makes them more functional and aesthetically pleasing.

Description

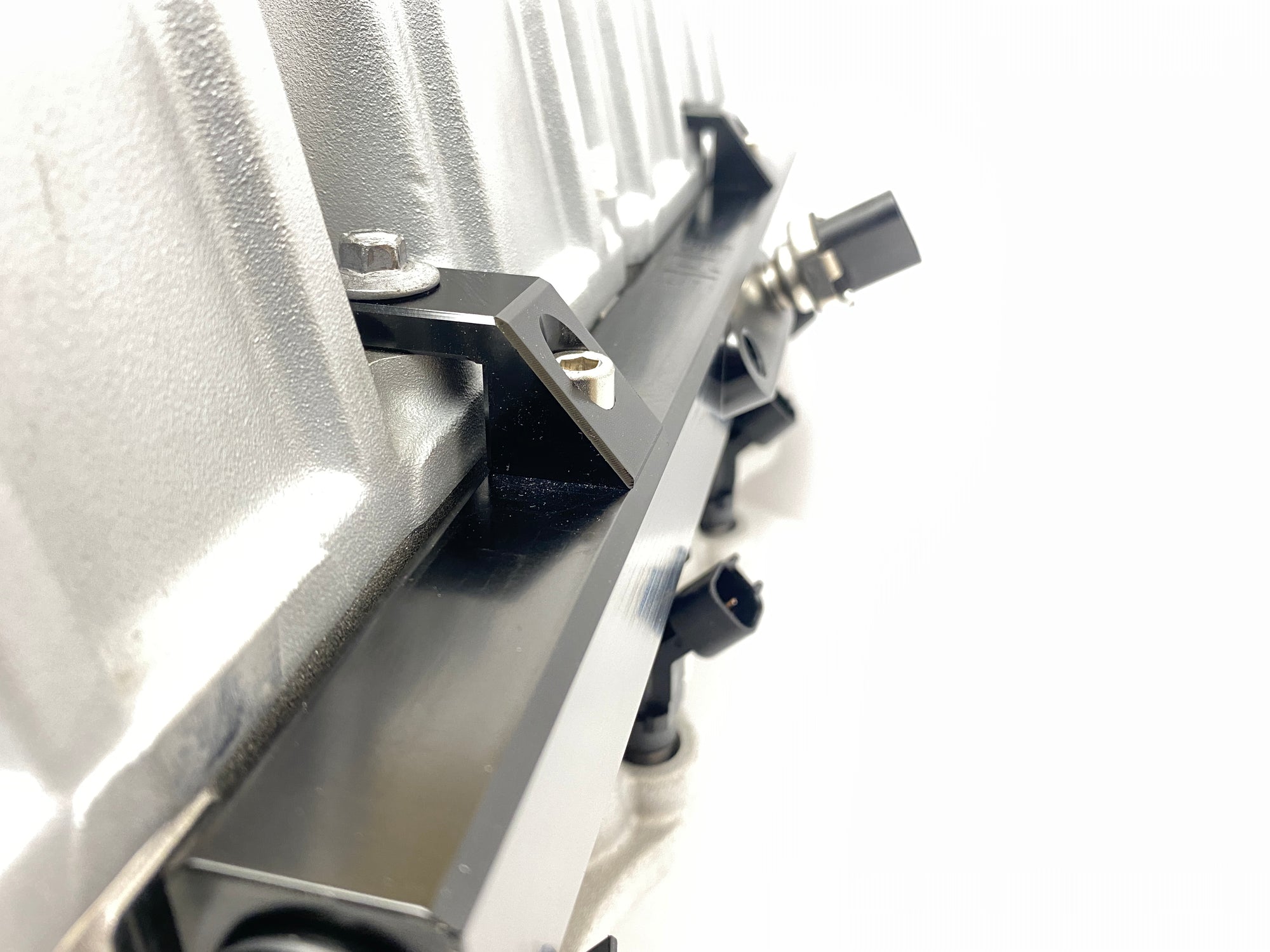

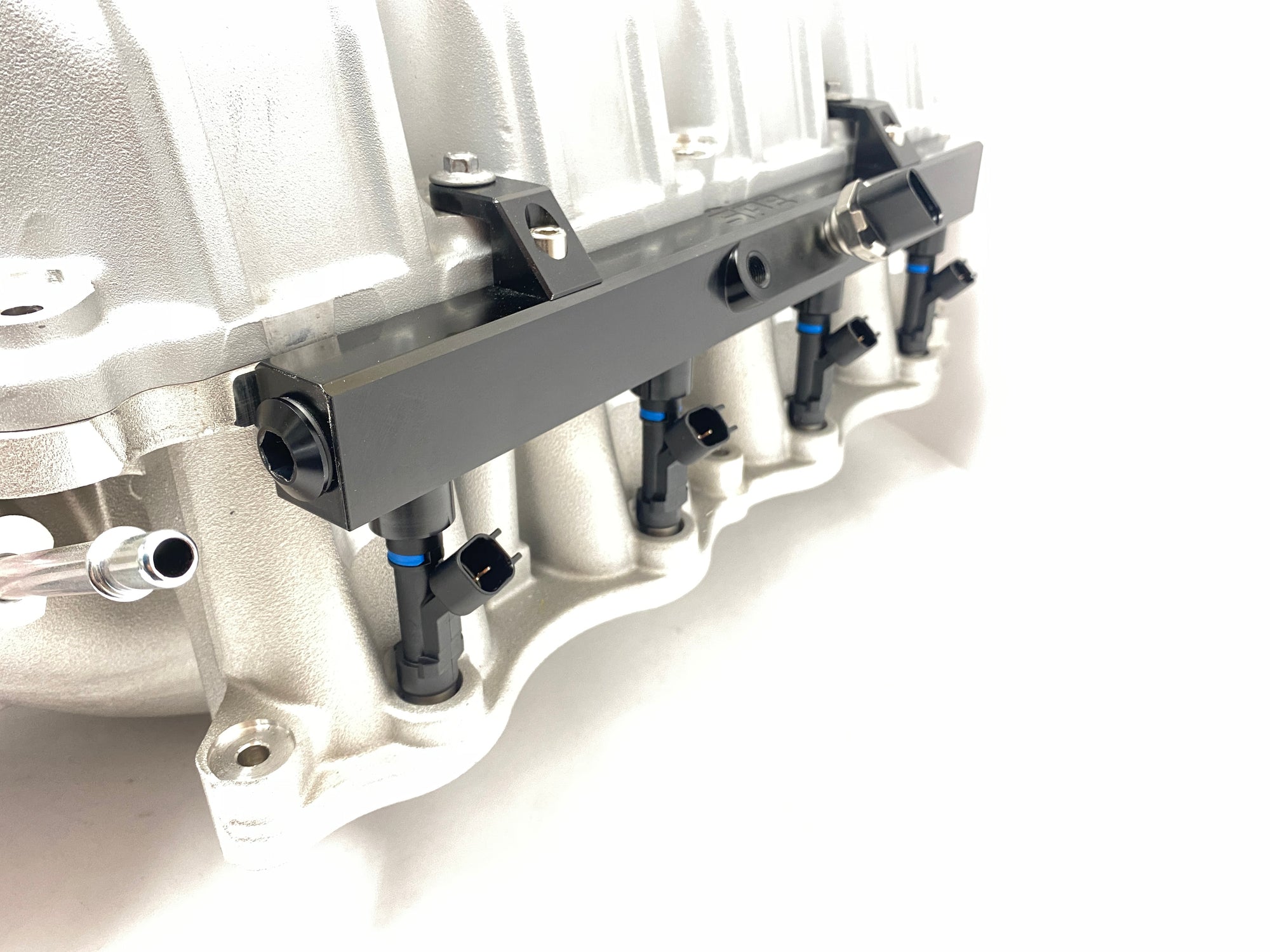

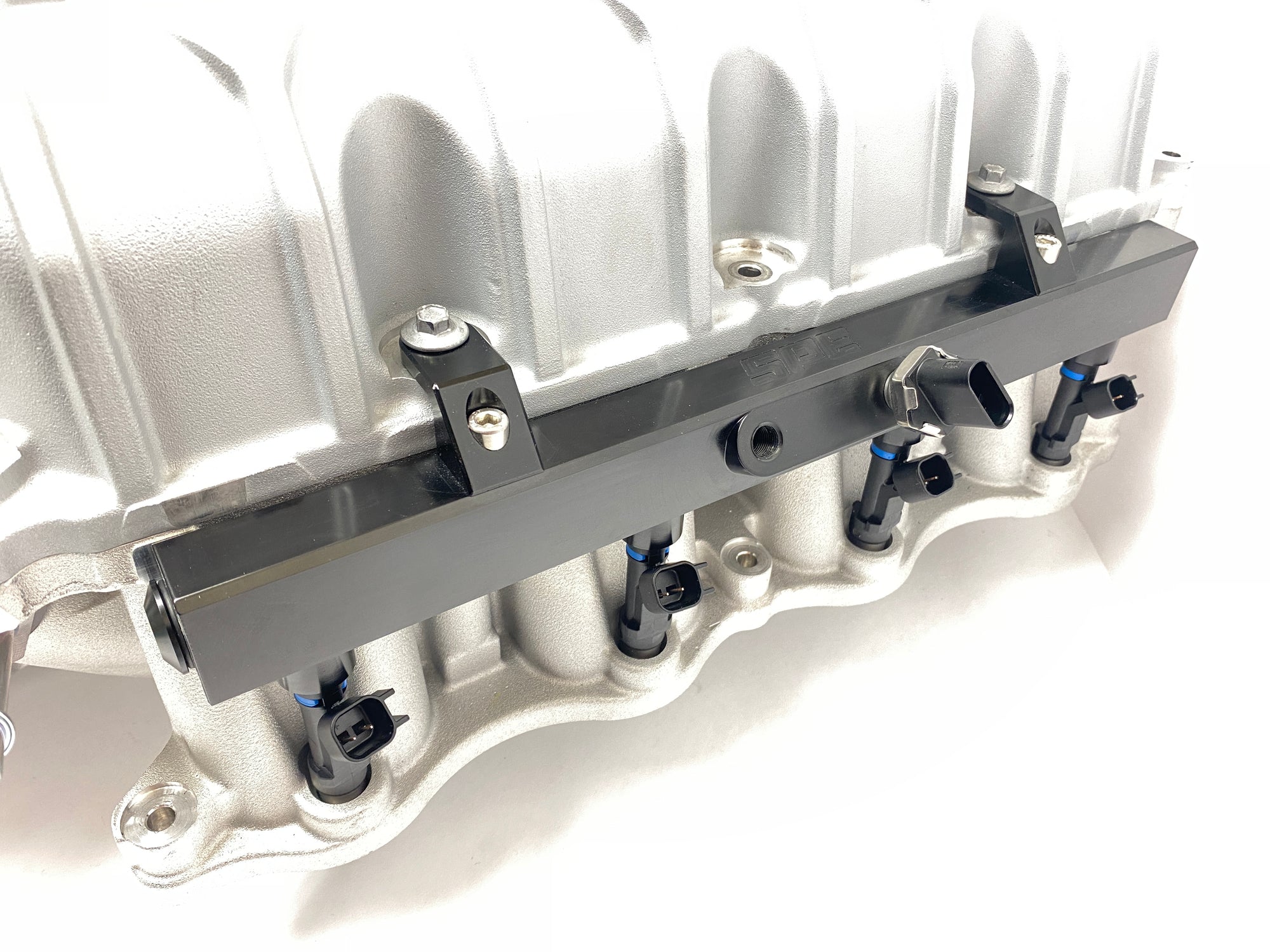

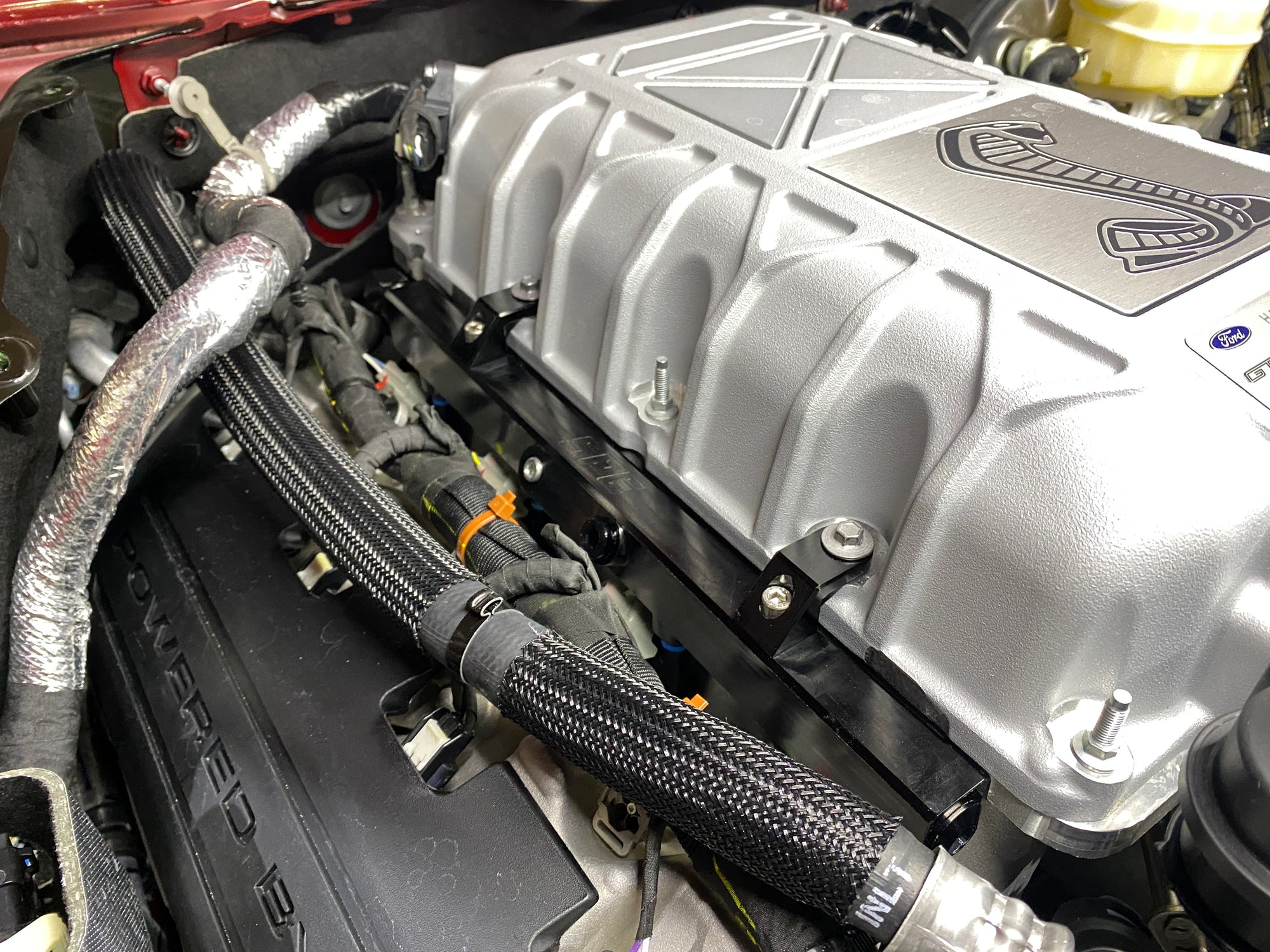

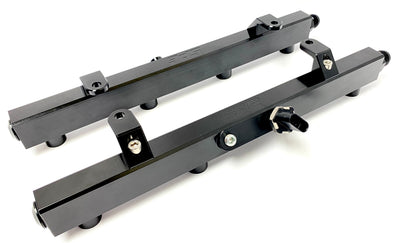

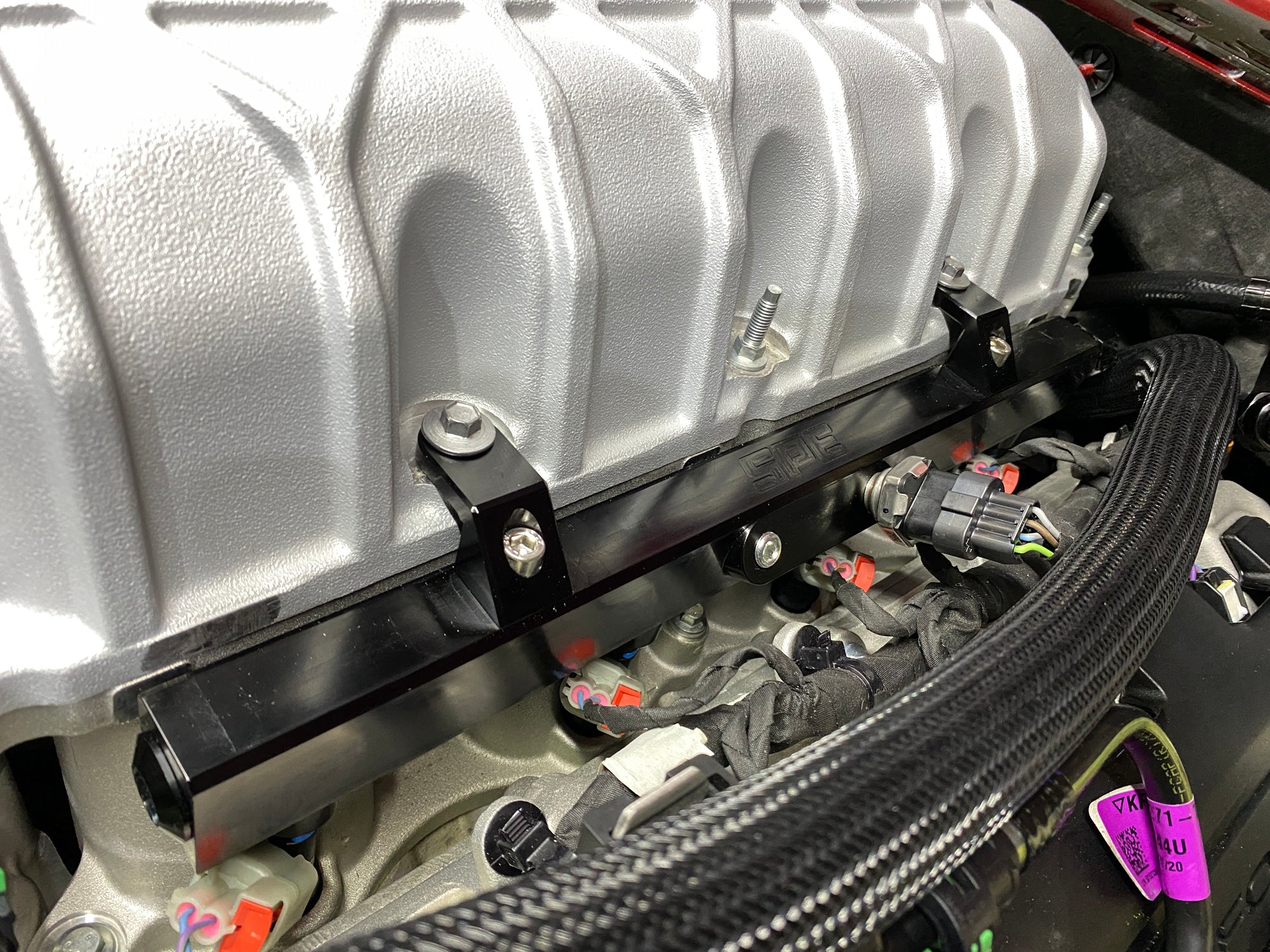

This is a complete fuel rail kit for your 2020+ Shelby GT500 which includes the fuel rails as well as all necessary hoses and fittings to install on your car using the factory fuel line up to the firewall. The fuel rails are -8 AN size made from billet aluminum and are anodized black. SPE has changed the angle of the factory fuel pressure sensor to allow for more clearance to keep it clear of the wiring harness. We also added two 1/8th inch NPT ports on each rail for fuel pressure or auxiliary fuel feed for nitrous systems.


BENEFITS & FEATURES:

  • -8AN Fuel Rails
  • Hard Anodized Black
  • Made from 6061 billet aluminum
  • Retains factory fuel pressure sensor

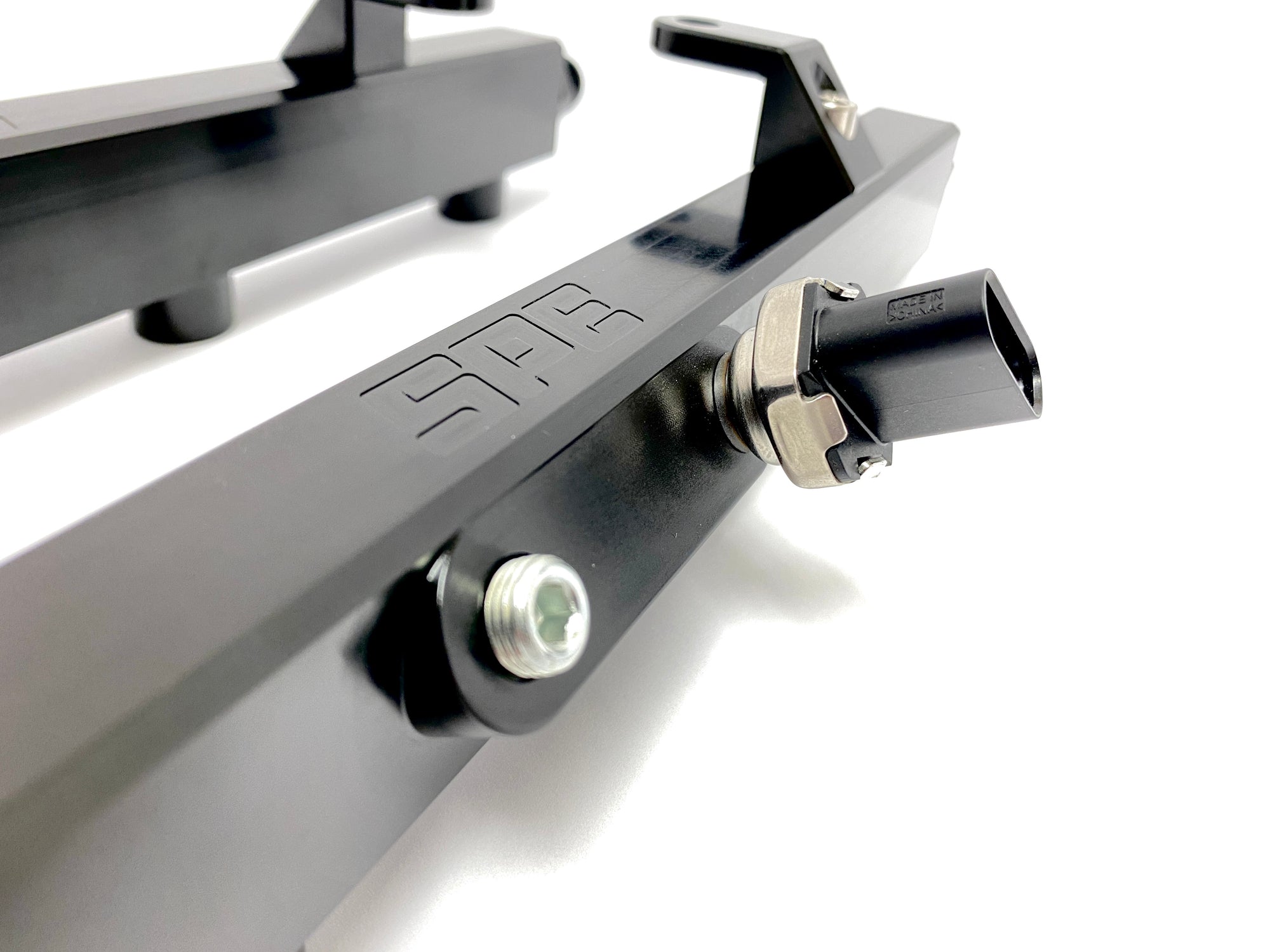

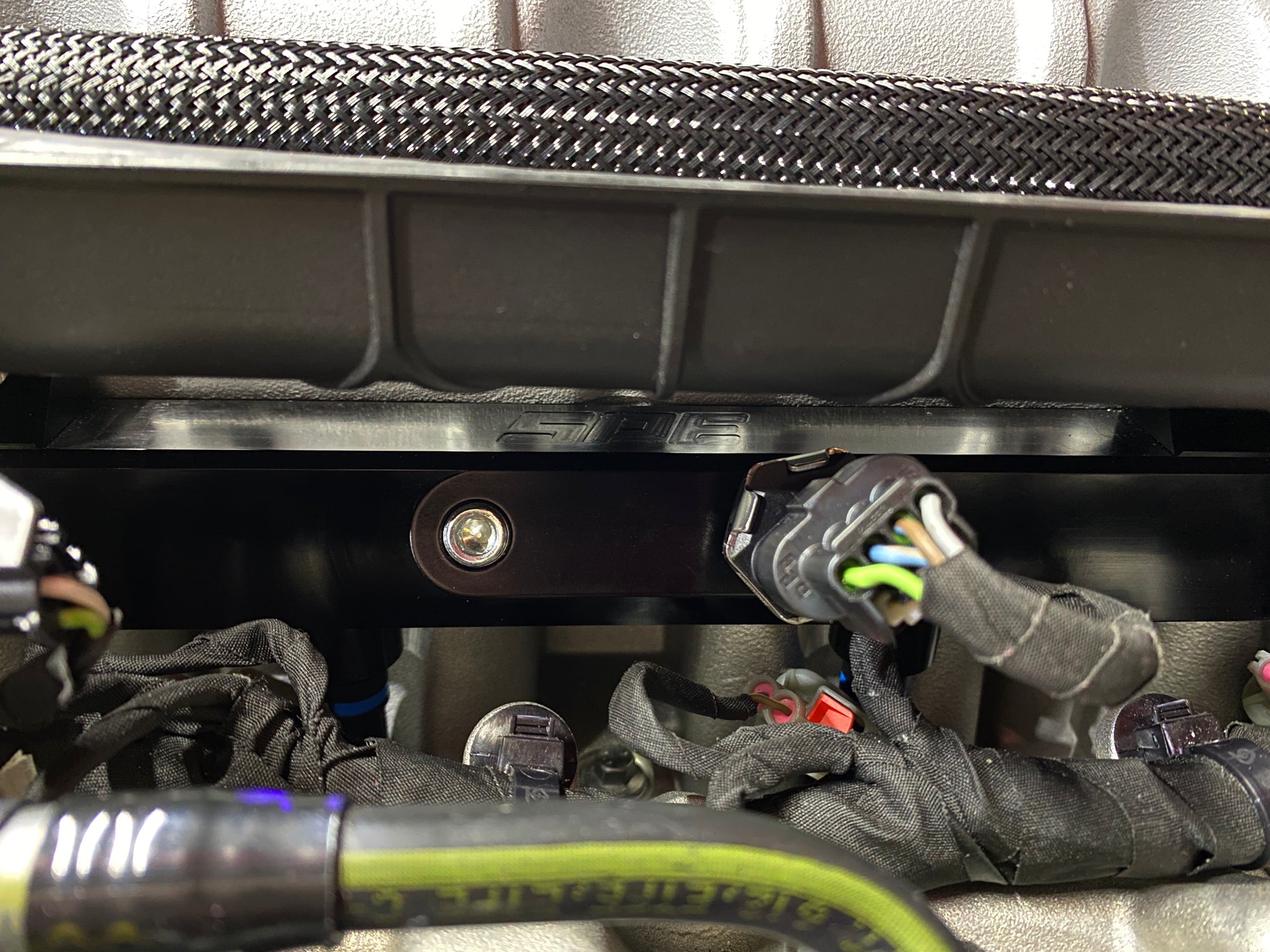

  • Properly angles fuel pressure sensor away from harness
  • Added two 1/8th NPT Fuel pressure ports
  • Anodized Billet Mounts (instead of cheap sheet steel)
  • OEM replacement with better fitment
  • Includes all necessary fittings, hoses, and o-rings to install
  • One of the cleanest and best flowing kits on the market
  • Can be easily adapted for a return fuel system upgrade later on

Includes:



  • Fuel rails
  • 4 ORB to -8AN fittings
  • O-Rings
  • All required hardware

*Factory fuel pressure sensor not included.
